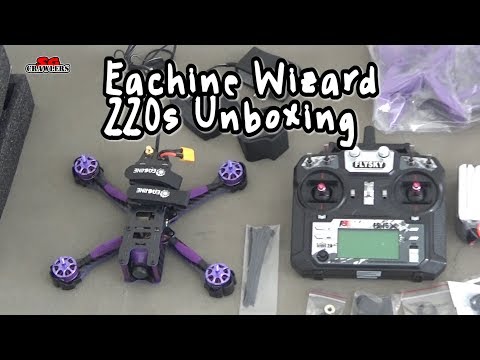

Unboxing and First Look: Eachine Wizard X220S FPV Racer RC Drone Omnibus F4

Title:

Description:

Unboxing and First Look: Eachine Wizard X220S FPV Racer RC Drone Omnibus F4
Check out the item here https://goo.gl/uyFbCm

Check out the unboxing and first look at the Eachine Wizard X220S FPV Racer RC Drone Omnibus F4 5.8G 72CH 30A Dshot600 800TVL Flysky FS-i6X RTF - Mode 2 (Left Hand Throttle) Racing Drone!

Comes with Transmitter, quad, 4S battery, spare propellors, GoPro Session Mount and etc.

Loving it so far!

Can't wait to test fly it! :)

Thanks for watching!

Who are we?
We are a group of passionate RC enthusiasts coming together weekly for RC fun. :)

Add us on Facebook
http://Facebook.com/SGCrawlers
http://Facebook.com/Boolean21

Instagram
http://Instagram.com/sgcrawlers

Visit us at   http://SGCrawlers.co.nr   and   http://MyHoncho.blogspot.com

Subscribe to our youtube Channels
http://youtube.com/MyHonchoSG
http://youtube.com/BooleanRC

Keep RC-ing!!! :D

Description from Website
-----------------------------------------
Item Specification
Eachine Wizard  X220S
Wheelbase: 220mm
Frame arm: 4mm carbon fiber
Weigh: 356g (without battery and camera mount)
Take off weigh: 561g
Package weigh: 1728g
3K carbon fiber frame kit, 4mm thickness and 15mm width frame arms, the width is 10mm less than Eachine Wizard X220.
Frame kit with camera angle scale and 30° camera mount for Runcam 3 Gopro session.
Anti-vibration sponges to protect the racer frome crashing.

Eachine  MN2206 2300KV motor

KV: 2300
Max thrust: 1100G
Length: 35MM
NO.OF cell: 3-5S
Diameter: 28MM
Framework: 12N14P
Shaft: 5mm
Propeller: 5 inch
Weight: 28g

Eachine 30A BLHELI_S  4 in 1 ESC
Con. current: 30A
Peak current (10S): 35A
Input  voltage: 2-5S
BEC: 5V output
Programming: YES
Firmware: blheli_s
Weight: 28g
Size: 36*36MM

Eachine 1179 800TVL CCD camera
Color: purple
Sensor: CCD
Resolution(horizontal center): 800TVL
Shell size: 25mm*25mm
Weight: 11g
Resolution: PAL: 1980H×1080 (2MP)
Format: PAL
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55dB.
AWB: ON/OFF
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: internal synchronization
Lens: standard 2.8mm lens
Working voltage: DC12V (Wide Voltage, measured that can be work in 5-13V)
Workig current: 70mA (low power consumption)
Workig temperature: -20℃--60℃
Humidity: 0%~98%
Strong backlighting effect

1500mAH 4S 14.8V 75C battery

Capacity(mAh) : 1500
Cells (s): 4
Weight (g): 177
Length(mm): 80
Width(mm): 30
Height(mm): 33
Connector: XT60

Eachine 5051 3-blade propeller
Color: purple
Quantity: 10 Pairs
Mounting Hole: 5mm

Eachine wizard X220S FPV drone english manual

Package included:
1 x Eachine Wizard X220S frame kit
1 x Flysky FS-i6X remote control
1 x Flysky FS-A8S receiver
2 x 2206 2300KV motor CW
2 x 2206 2300KV motor CCW
1 x Eachine 30A BLHELI_S  4 in 1 ESC
1 x Omnibus F4 V3 flight controller
1 x 800TVL camera
1 x 5.8G 72CH 25MW 200mw 600MW switchable VTX
10 x Eachine 5051 3-blade propeller purple CW
10 x Eachine 5051 3-blade propeller purple CCW
1 x 1500mAH 4S 14.8V 75C battery
1 x 30° Camera Mount(For Runcam3/Gopro session)
1 x Charger
1 x Pagoda antenna
2 x Battery strap
2 x Wrench
